Solar Adaptor Kit Cables 12AWG Connecting Solar Panel to Controller
Description

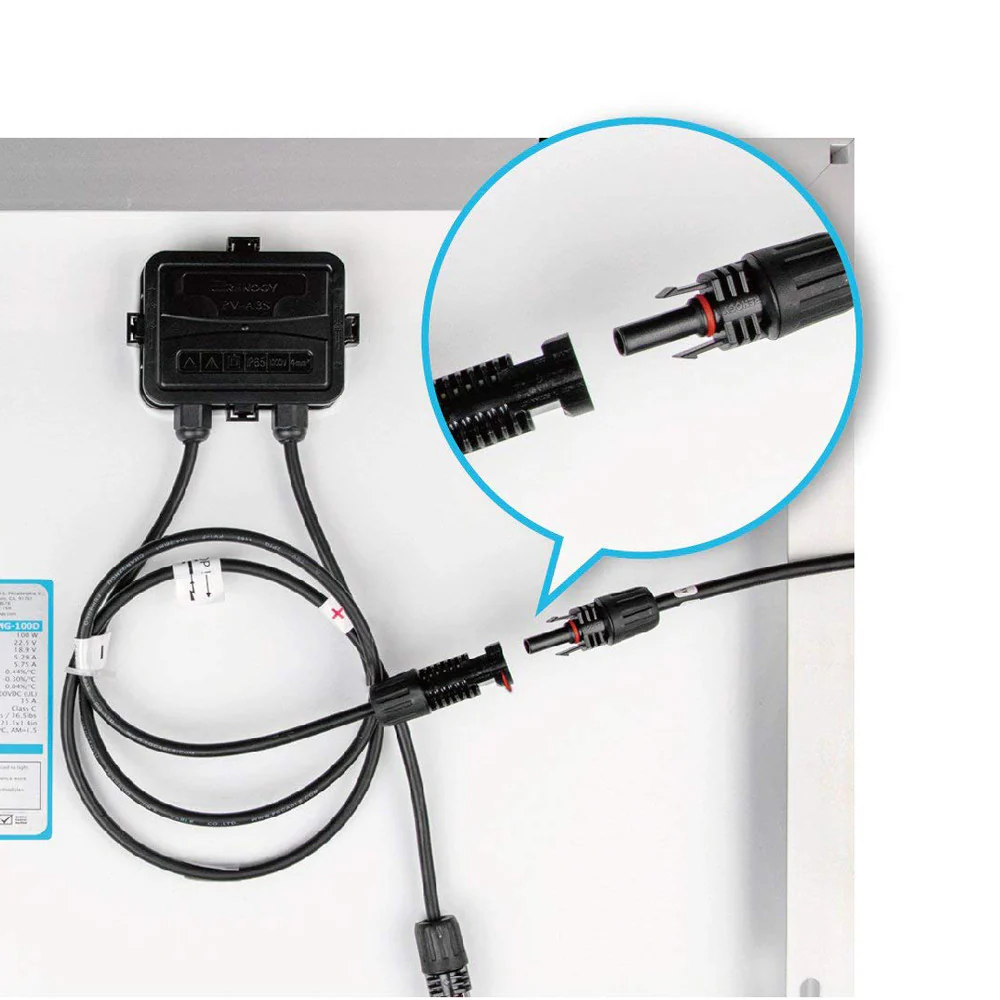

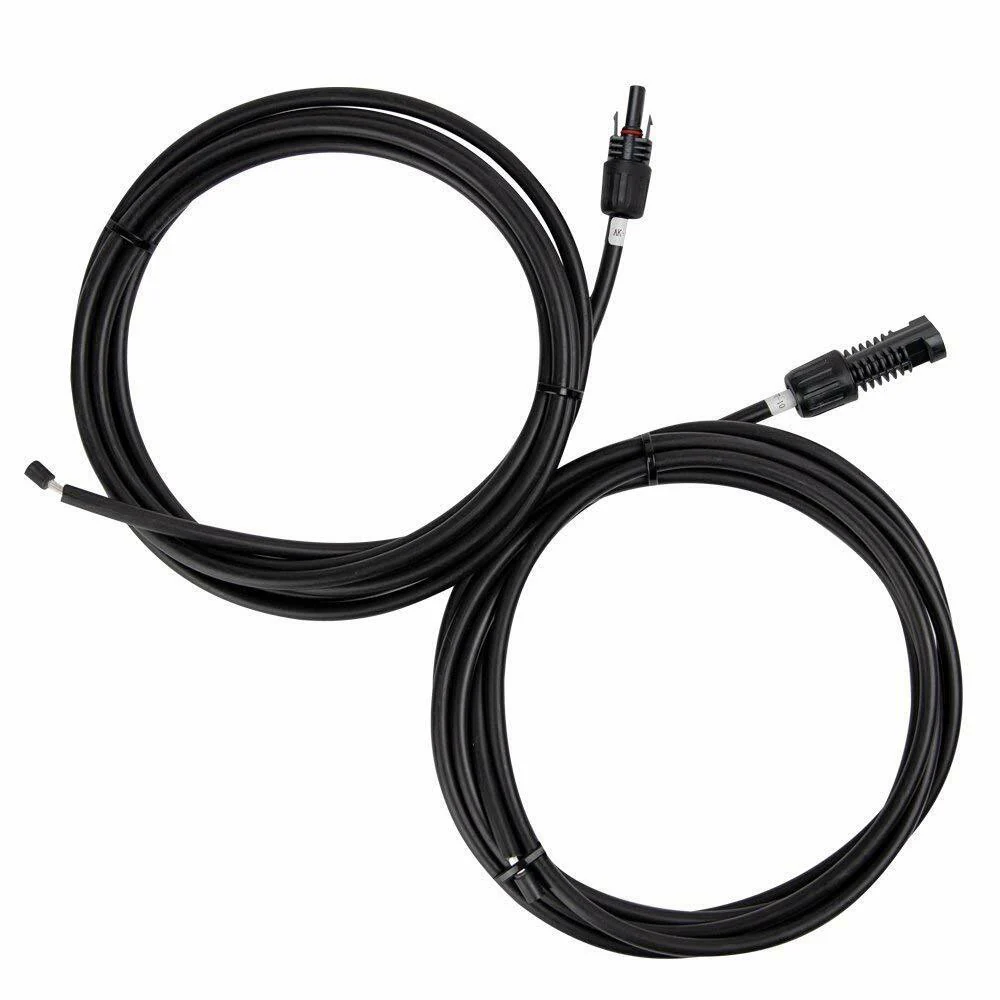

Renogy Adapter Kit is a set of two wires made for connecting your Renogy panel to your charge controller. Specialized with solar connectors on one end for effortless connection to your panel and exposed wire on the other end to lead directly into your charge controller, this wire makes system set up as easy as can be!
Renogy offers a range of different lengths, as well as two gauge sizes to choose from. The different sizes allow you to customize to your systems based on your needs.
If you have any questions regarding this product, please submit a case !
Key Features
- Hard plastic connectors at each end.
- Female and male connectors for an unbreakable connection.
- Weatherproof, insullated wiring.

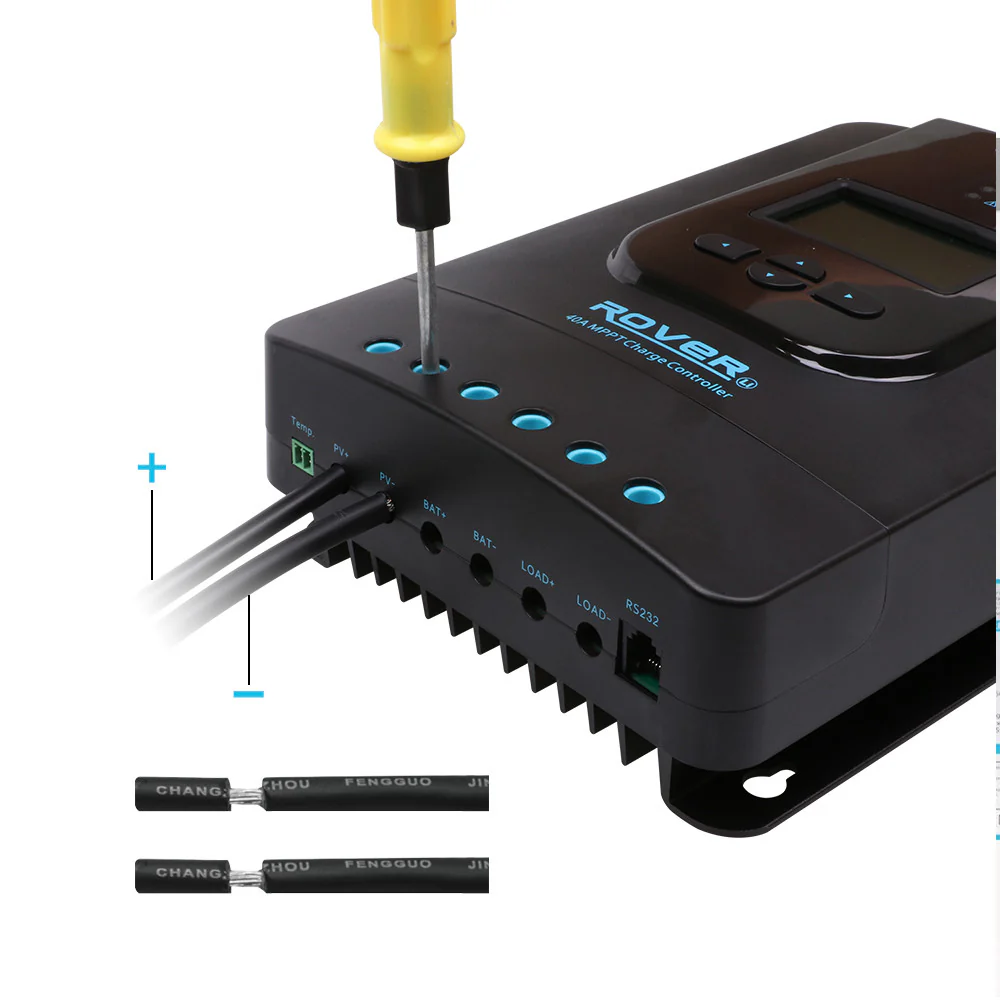

- Exposed ends for connection to the solar charge controller.
- Essential for off-grid solar power system setup.
- Black sunlight resistant cable.
- Extends and locks built-in cables.
Package Includes
|
Solar Adaptor Kit
1 x
|
| 9in 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) | |
|---|---|
| Length: 9in | AWG: 12 |
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 4.0 | Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.78 | Min. Wall Thickness of Sheath (mm): 0.97 |
| Number of Wires in Conductor: 56 | IP 65 Protection |
| Conductor: Tinned copper wire |
| Renogy 10ft 12AWG Adaptor Kit - Connecting Solar Panels to Charge Controllers (A Pair) | |
|---|---|
| Length: 10ft | AWG: 12 |
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
| Normal Cross Sectional Area of the Conductor (mm2): 4.0 | Diameter of Wires in Conductor (mm): 3.02±0.08 |
| Min. Wall Thickness of Insulation (mm): 0.78 | Min. Wall Thickness of Sheath (mm): 0.97 |
| Number of Wires in Conductor: 56 | IP 65 Protection |
Warranty Information
| Accessories | 1-year material warranty |
 |
